TM 11-5840-203-15 Power Supply PP-674A/TPS-1D Radar Technical Manual June 1958

Original Department of the Army Technical Manual TM 11-5840-203-15, covering the Power Supply PP-674A/TPS-1D, published in June 1958 for use by both the U.S. Army and U.S. Air Force. This manual provides detailed operating, maintenance, troubleshooting, and repair procedures for the power supply used with the AN/TPS-1D tactical radar system.

An excellent original reference for collectors of Cold War military electronics, Signal Corps equipment, and vintage radar technical manuals.

Manual Details

• Title: Power Supply PP-674A/TPS-1D
• Manual Number: TM 11-5840-203-15
• Air Force Technical Order: TO 31P6-2TPS1-214
• Publication Date: June 1958
• Publisher: Departments of the Army and the Air Force
• Original softcover manual
• Includes foldout diagrams, maintenance procedures, and parts information (if complete)

Features

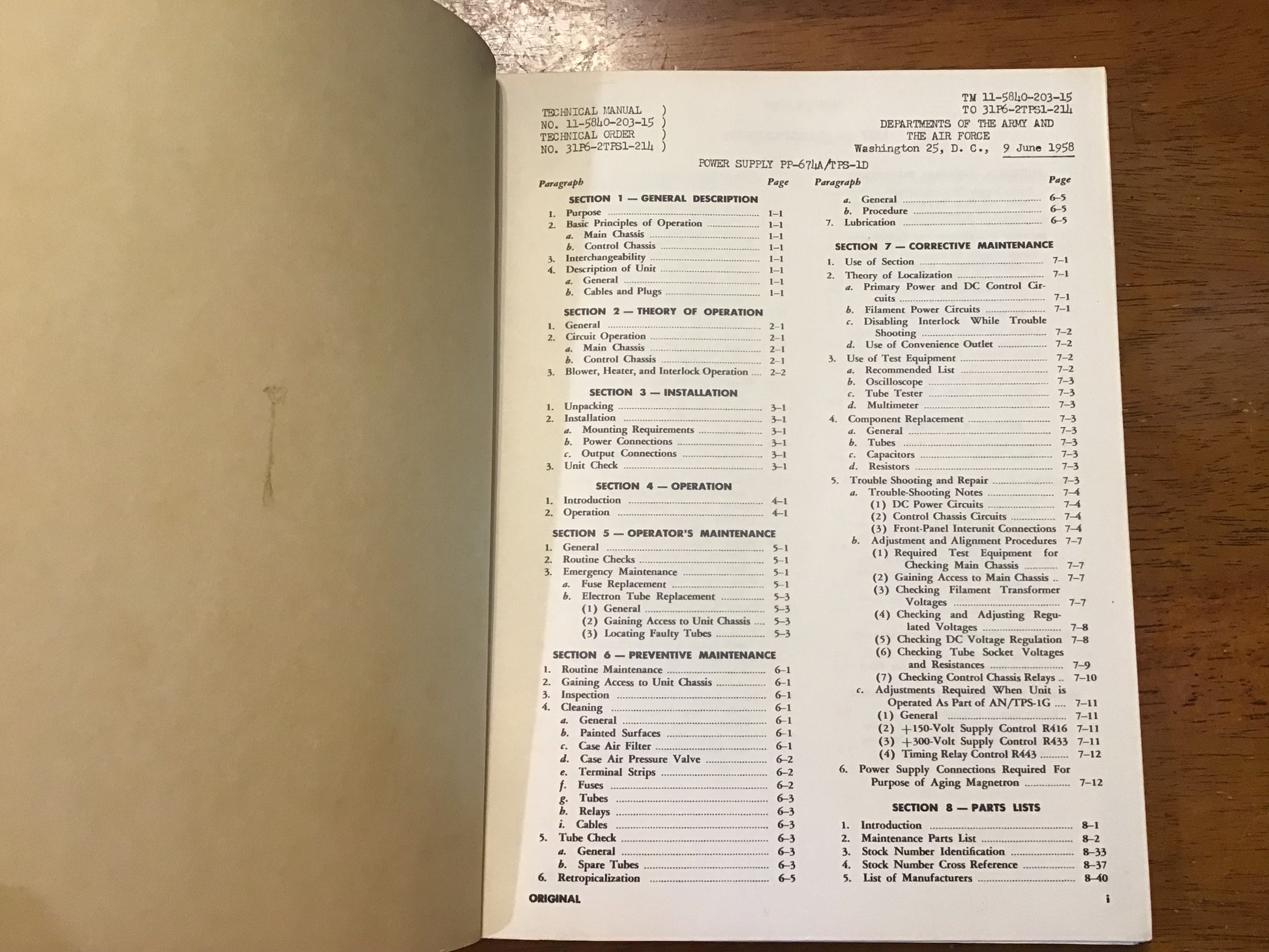

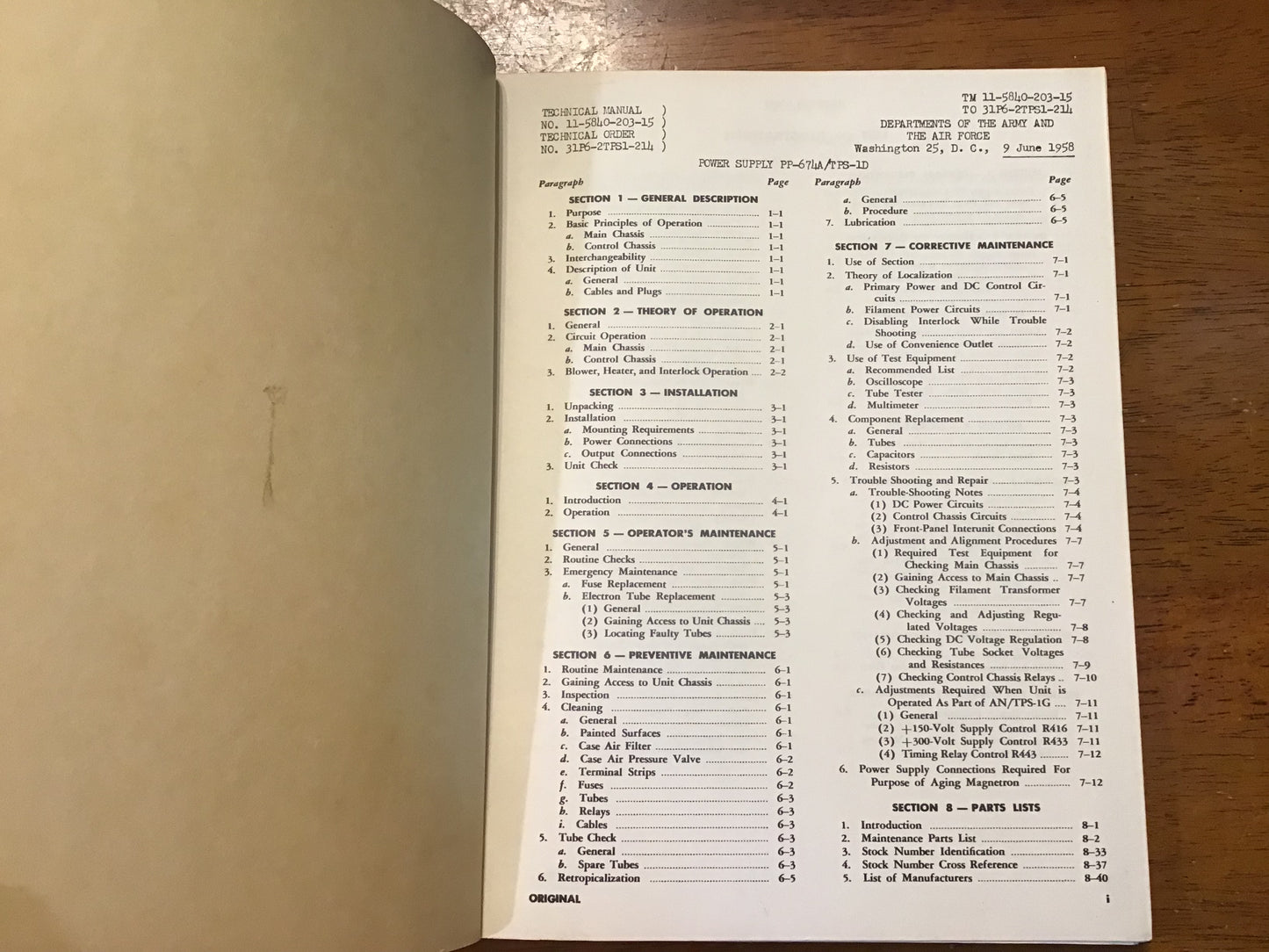

• General description and theory of operation
• Installation and operating procedures
• Operator and preventive maintenance
• Corrective maintenance and troubleshooting
• Voltage regulation and circuit testing
• Tube and component replacement
• Parts lists and stock number references

FREE SHIPPING
