WWII 1945 TS-226A/AP Power Meter Manual AN 16-35TS226-2 Restricted Radar

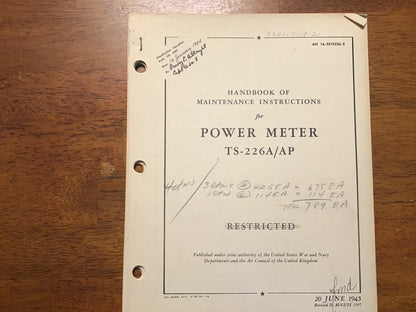

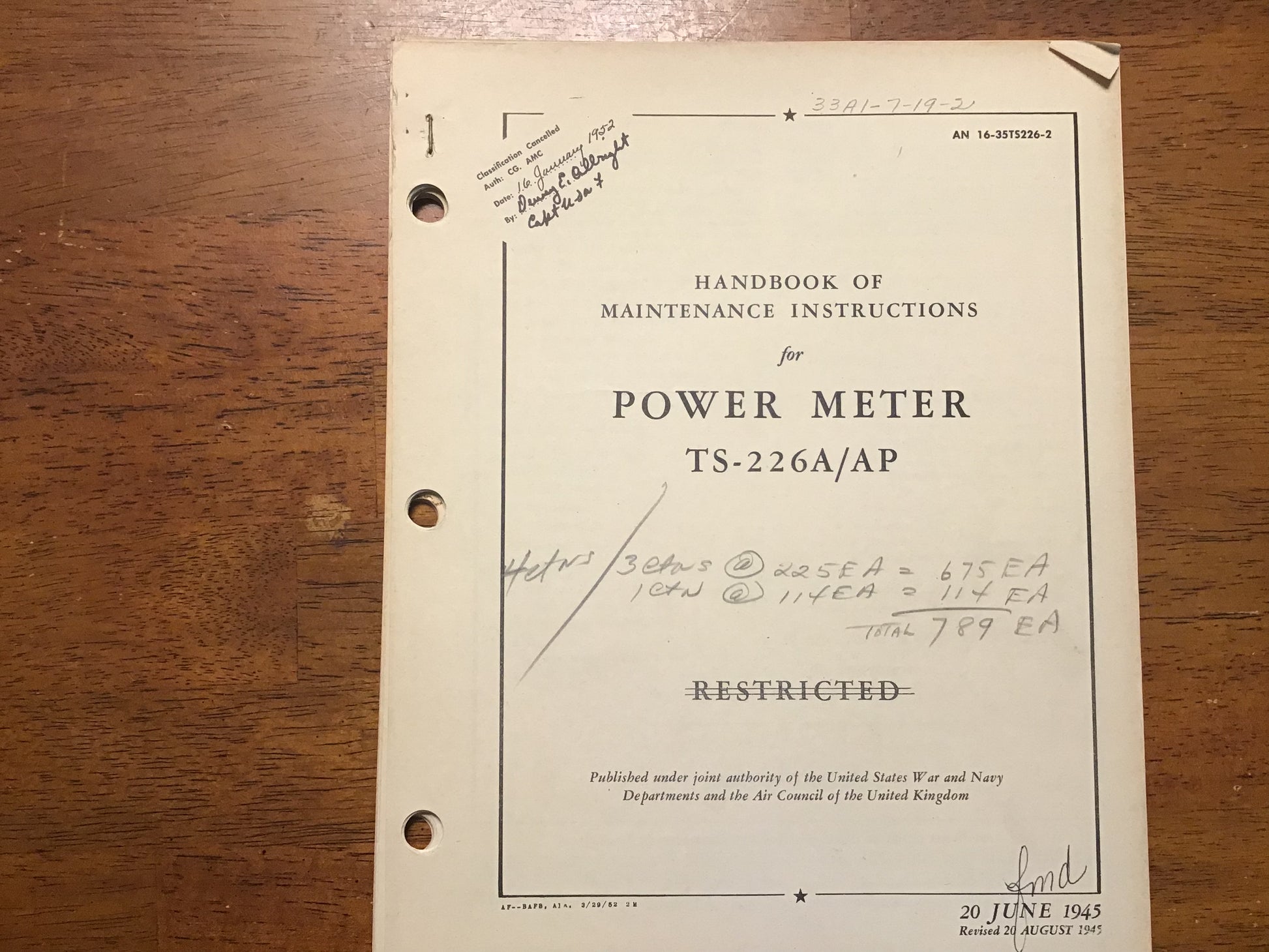

Original U.S. military technical handbook titled “Handbook of Maintenance Instructions for Power Meter TS-226A/AP.”

Issued jointly under authority of the United States War and Navy Departments and the Air Council of the United Kingdom, this technical manual dates from the final months of World War II.

Manual details:

• Equipment: Power Meter TS-226A/AP
• Publication: AN 16-35TS226-2
• Original date: 20 June 1945
• Revised: 20 August 1945
• Later printing notation dated 29 March 1952
• Originally marked RESTRICTED, with classification subsequently cancelled

The manual contains detailed sections covering the TS-226A/AP, including equipment description, installation and adjustment, operating procedures, theory of operation, maintenance and troubleshooting, calibration, replaceable parts, and technical drawings.

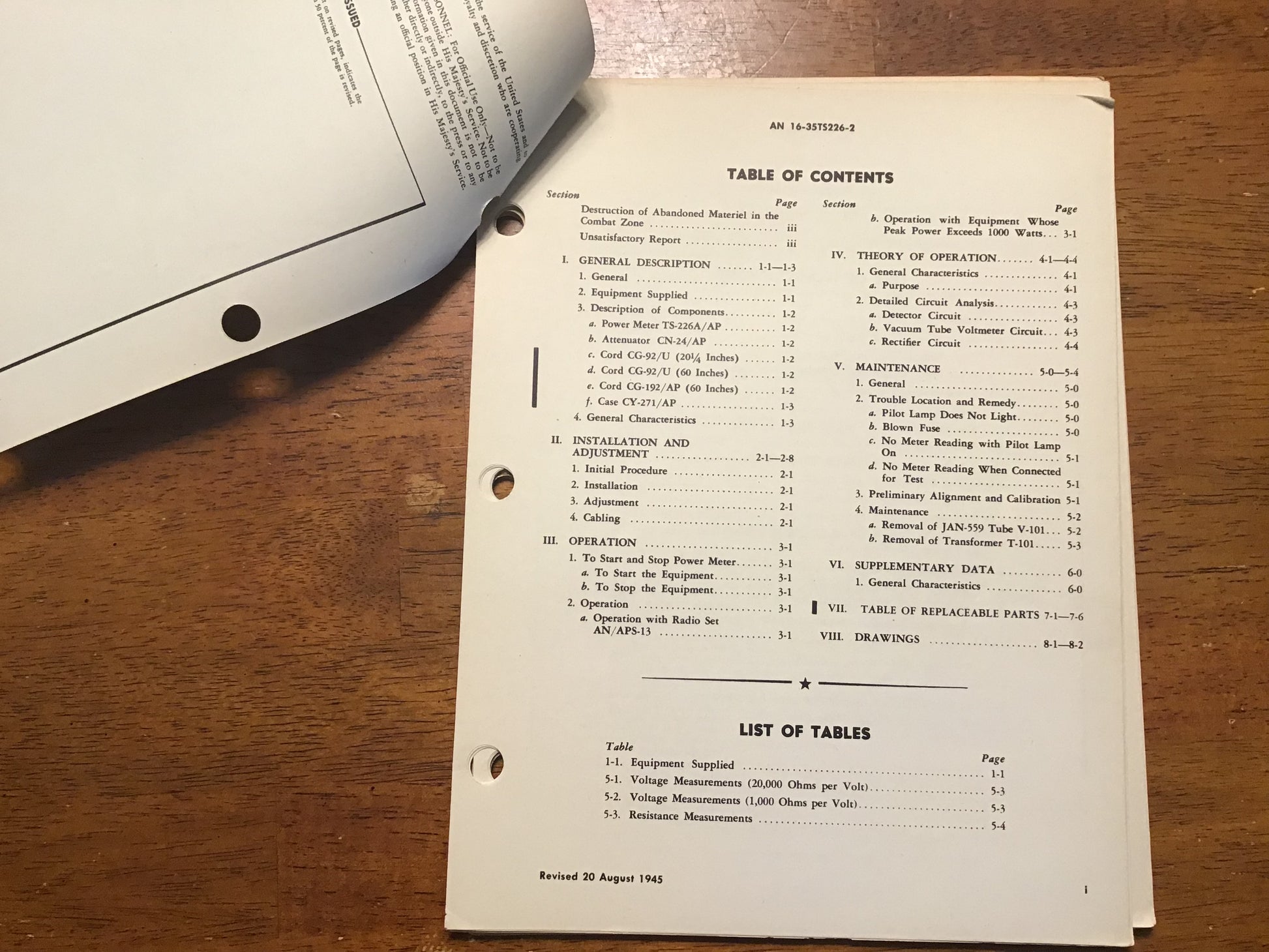

The table of contents identifies components including the CN-24/AP attenuator, associated cables, detector and rectifier circuits, and servicing/calibration procedures.

The TS-226A/AP was a UHF power meter associated with military radio/radar equipment; period references describe it as covering approximately 405–425 MHz and power measurements up to about 1,000 watts.
