WWII U.S. Army Standing Wave Indicator I-224-A – Western Electric – Radar Test Equipment

Offered here is an original World War II U.S. Army Signal Corps Standing Wave Indicator I-224-A, manufactured by Western Electric for use in radar and RF measurement applications.

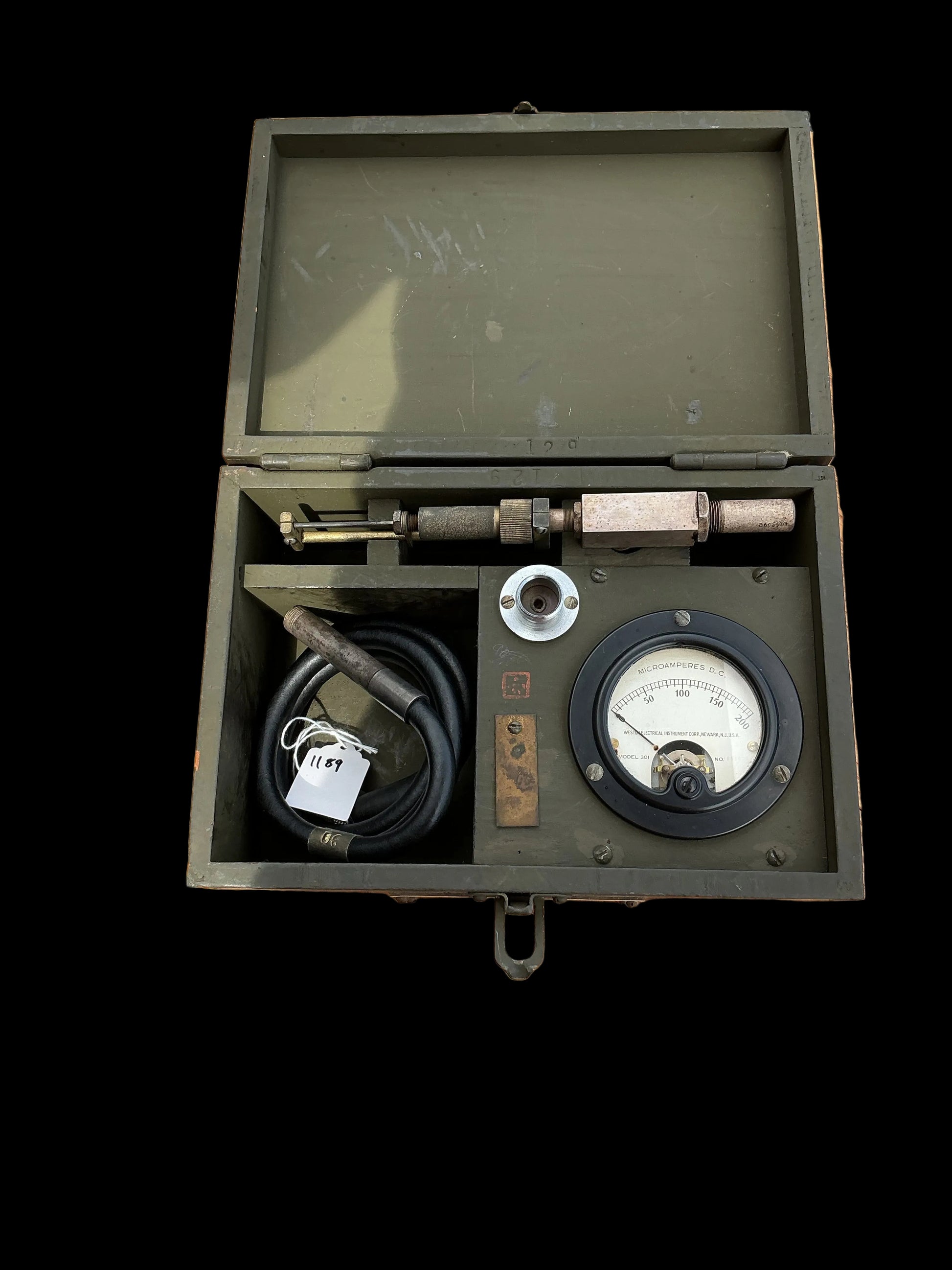

This unit is housed in its original metal transit case and includes internal components such as probe, cable, and meter assembly.

🔍 Details:

• Model: I-224-A
• Type: Standing Wave Indicator (SWR measurement)
• Manufacturer: Western Electric, New York
• Branch: U.S. Army Signal Corps
• Designed for Signal Corps radar laboratory use

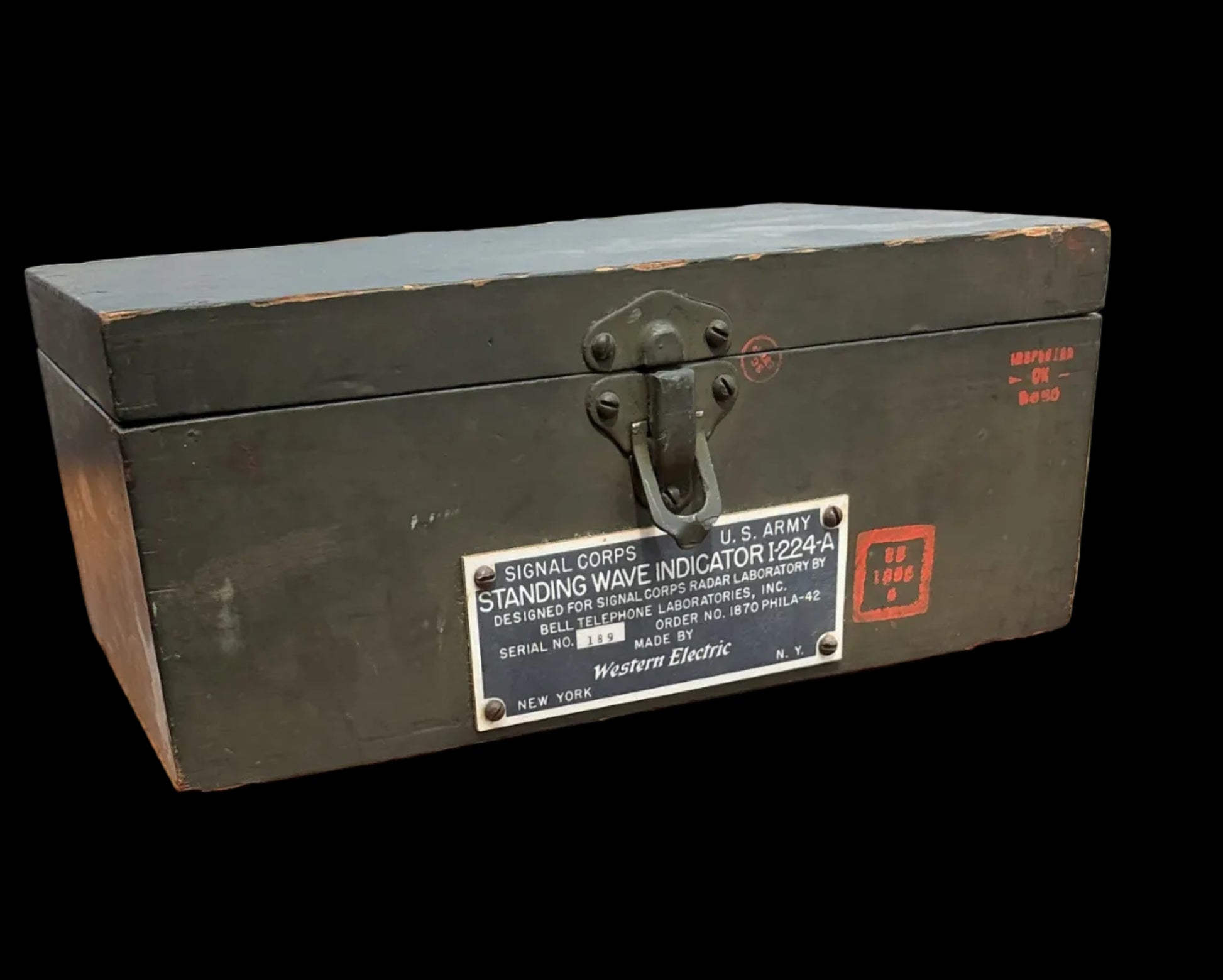

• Original data plate intact

📦 Condition:

• Untested
• Includes original case with internal components as shown
• Meter face marked Microamperes D.C.
• Interior appears largely complete

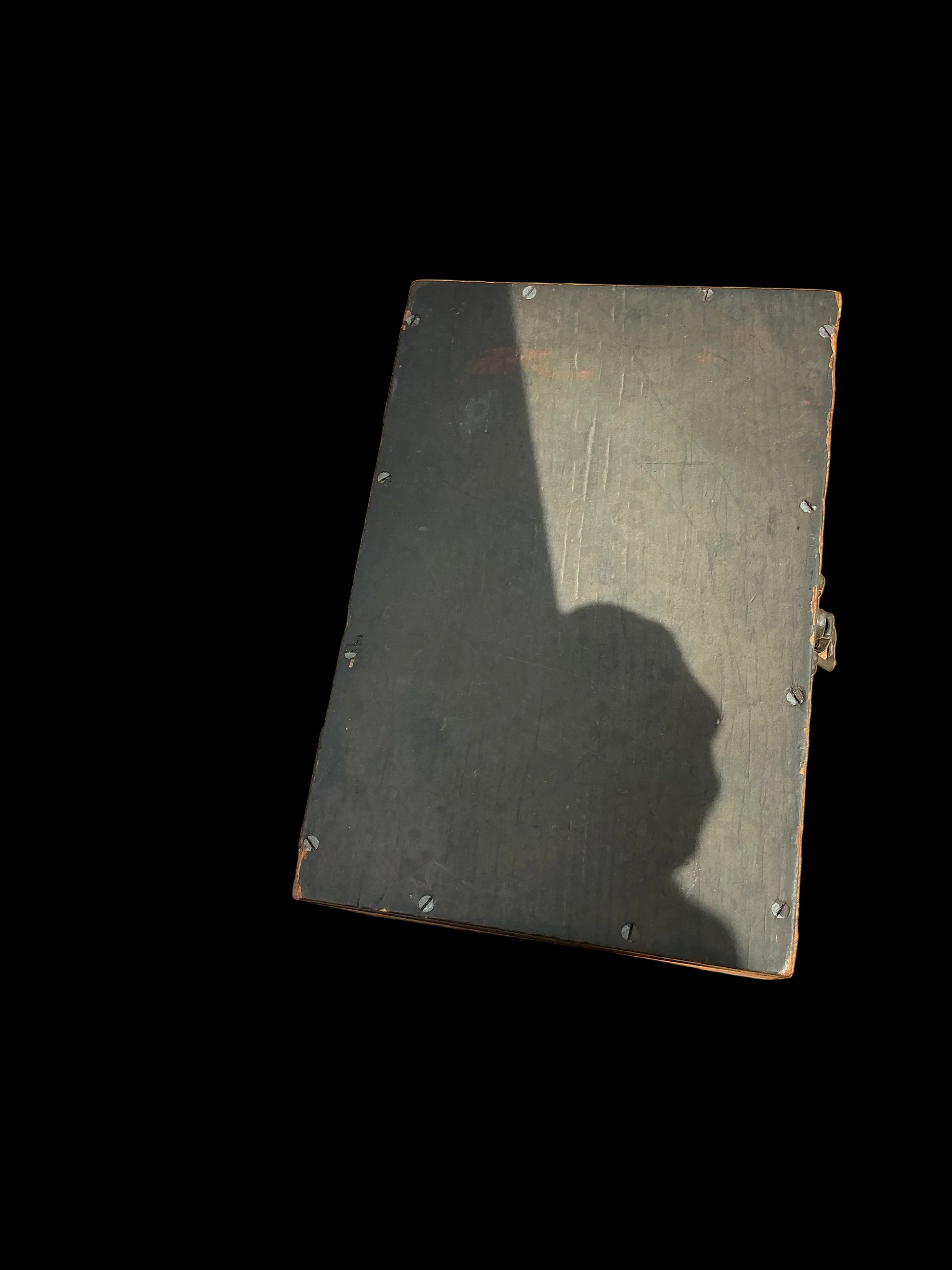

• Exterior shows cosmetic wear, paint loss, and age-related wear
• Stored dry

Being sold as:

• Collector piece
• Restoration project
• Or for parts/use by a knowledgeable technician

📡 Historical Use:

Standing wave indicators like the I-224-A were used to:

• Measure standing wave ratio (SWR)
• Tune antennas and transmission lines
• Test radar and RF systems
• Support Signal Corps laboratory and field operations

💡 Collector Appeal:

• Western Electric military equipment (highly collectible)
• Complete unit with original case
• WWII Signal Corps issue
• Compact and displayable
