WWII U.S. Navy Radar Test Equipment OBU-3 – Echo Box Assembly – Bureau of Ships

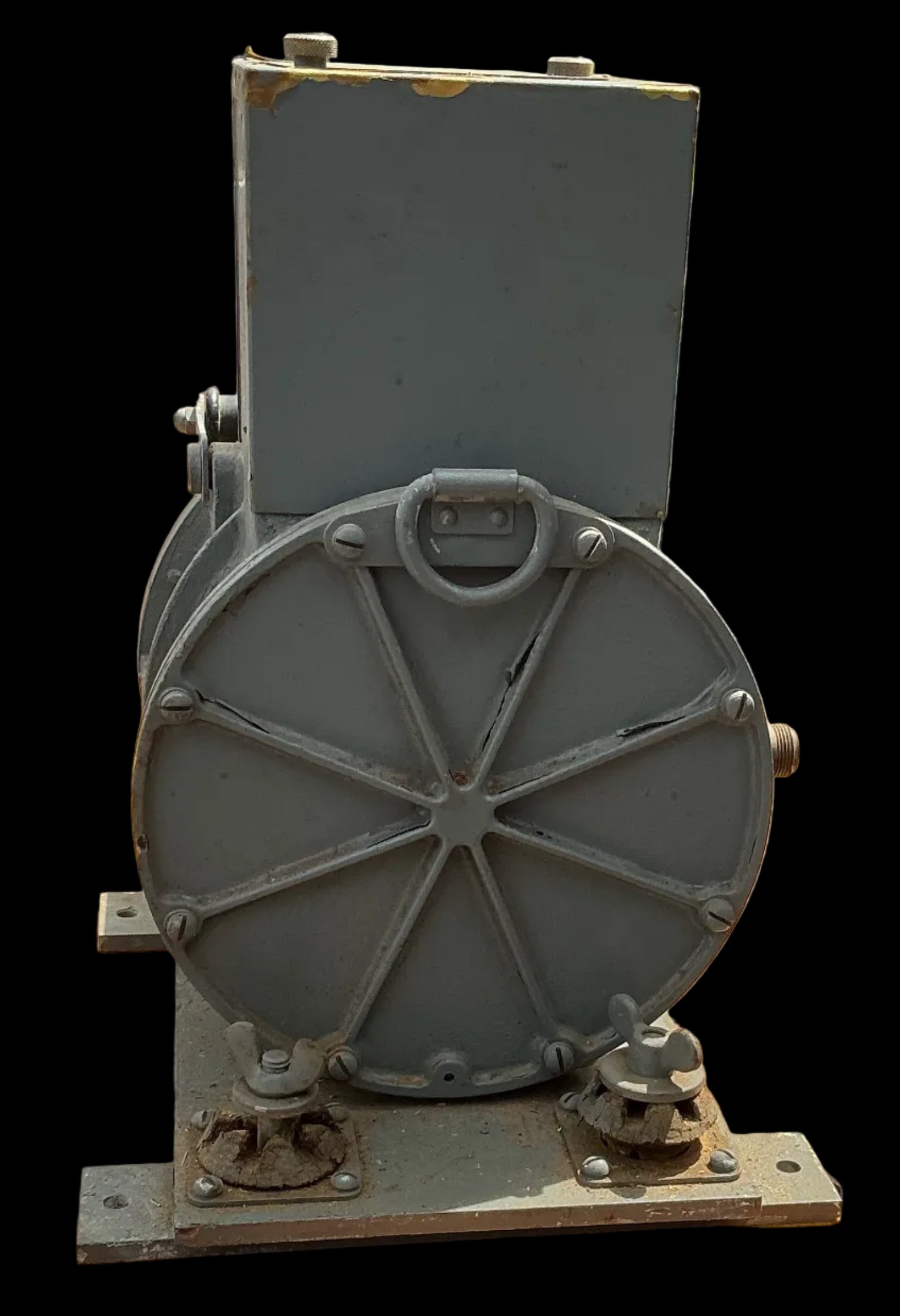

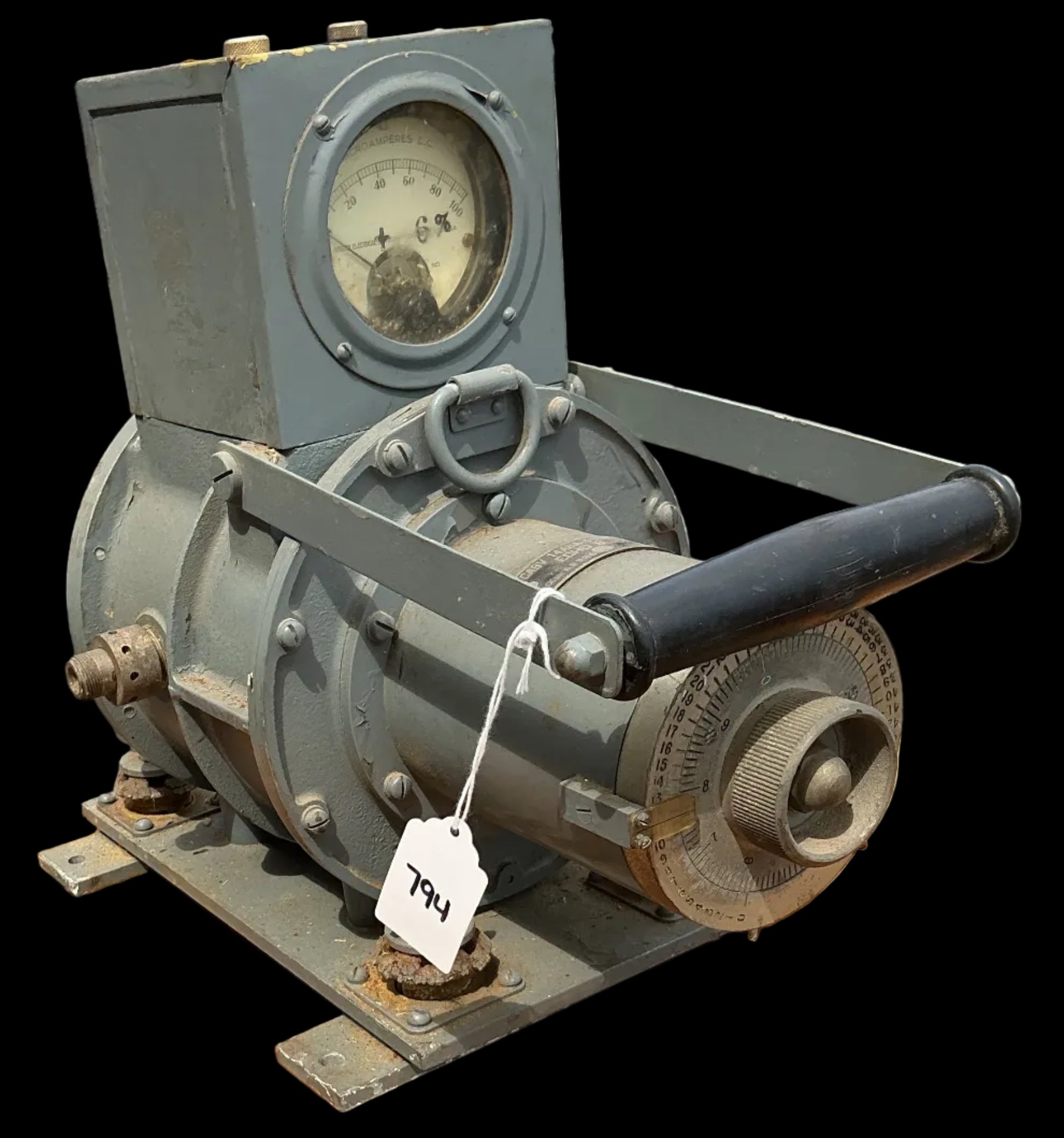

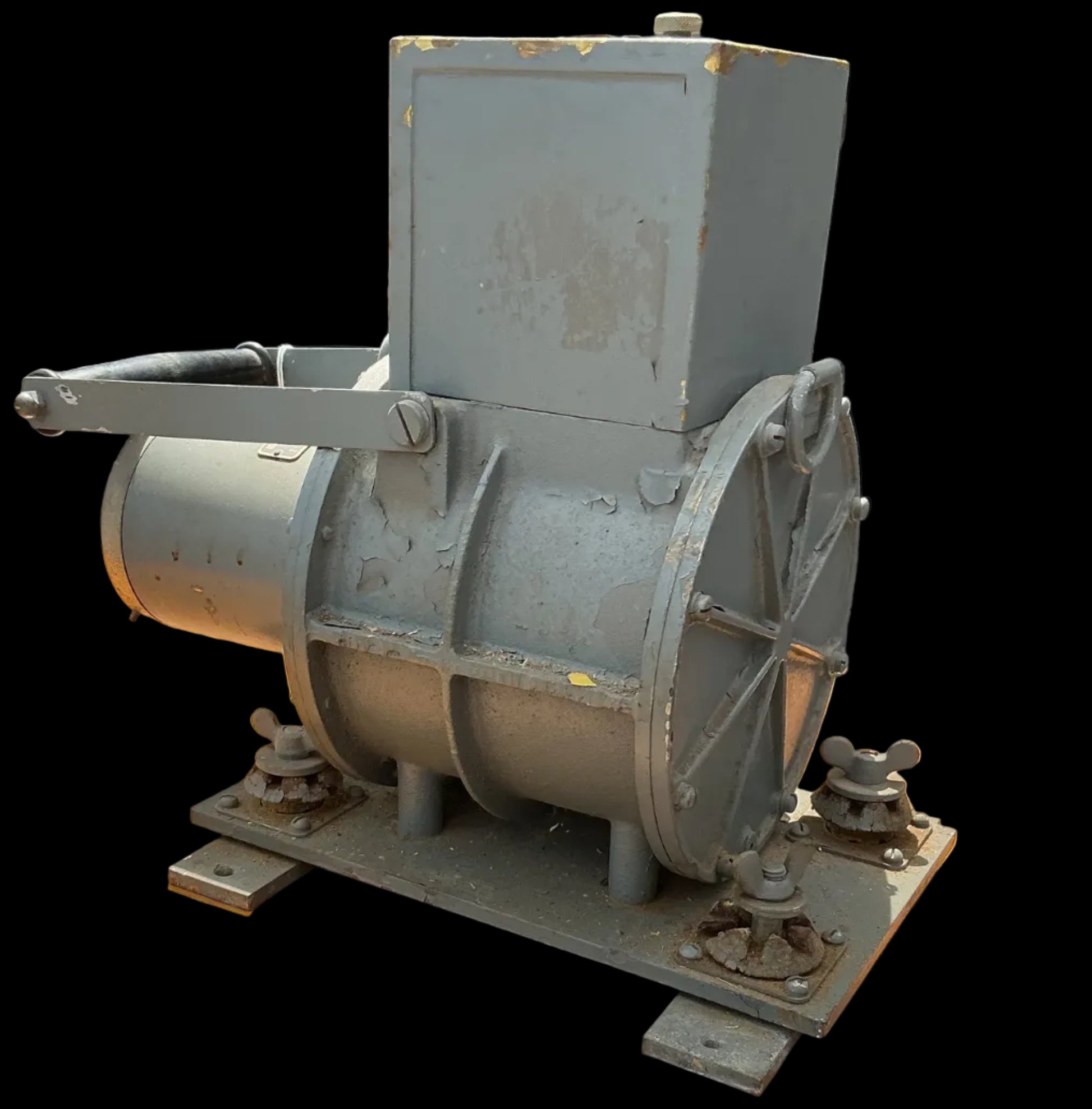

Offered here is an original World War II U.S. Navy radar test equipment unit designated OBU-3, complete with attached Echo Box assembly (CABV-14ABA-1).



Manufactured for the Navy Department – Bureau of Ships by Johnson Service Company (Milwaukee, WI), this unit was used in radar calibration and testing applications during WWII.









🔍 Details:





• Model: OBU-3 Radar Test Equipment
• Component: CABV-14ABA-1 Echo Box Assembly
• Manufacturer: Johnson Service Company
• Branch: U.S. Navy – Bureau of Ships
• Contract: NXSr 65336 (as marked)
• WWII-era production

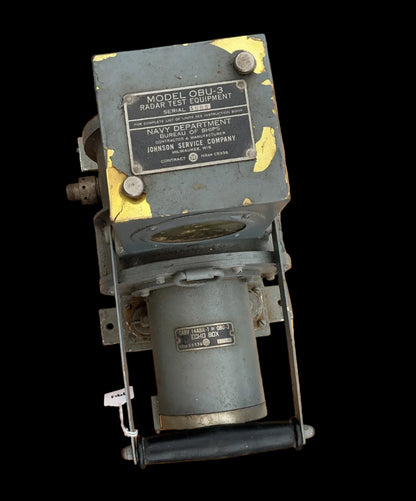

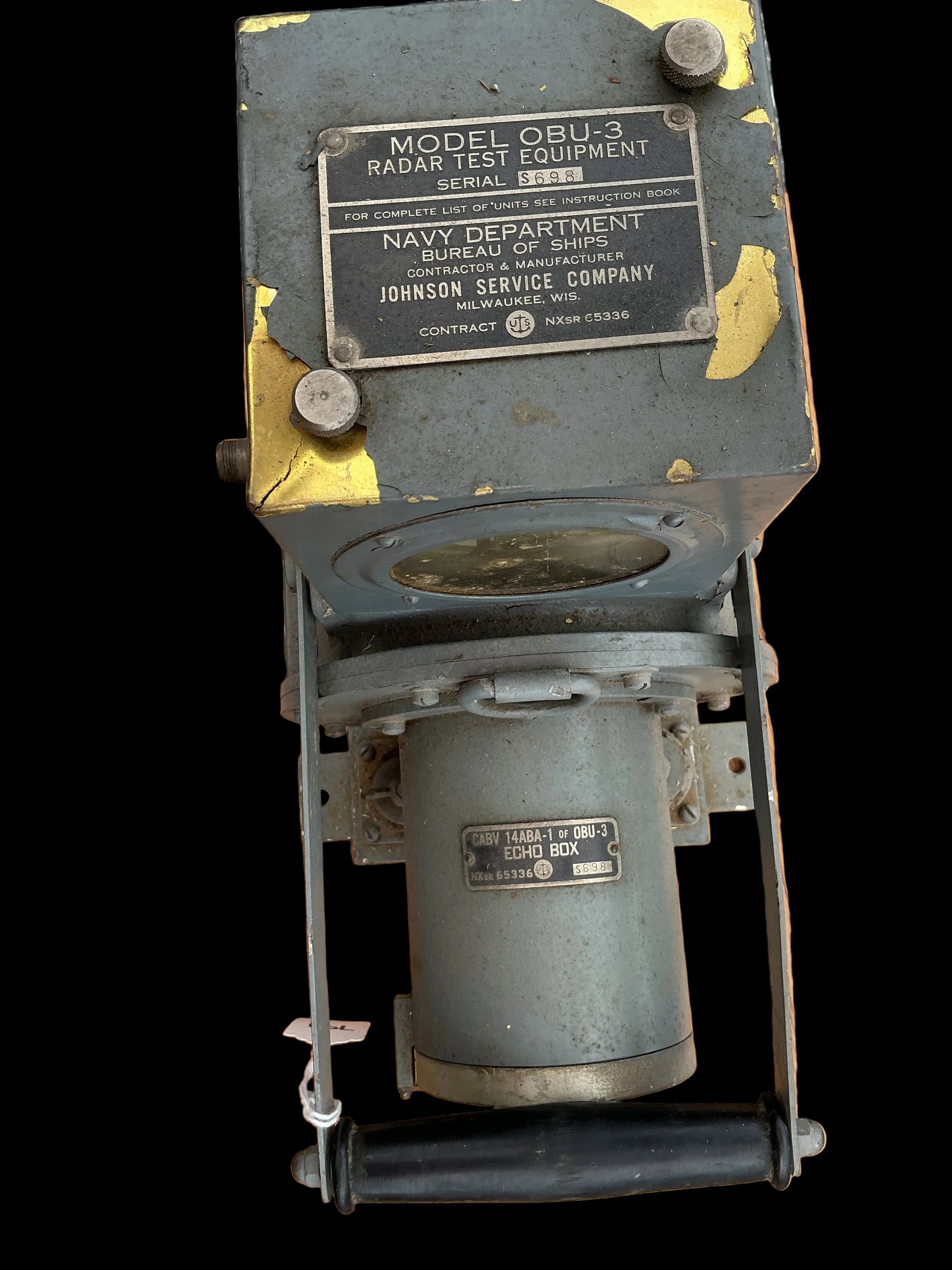

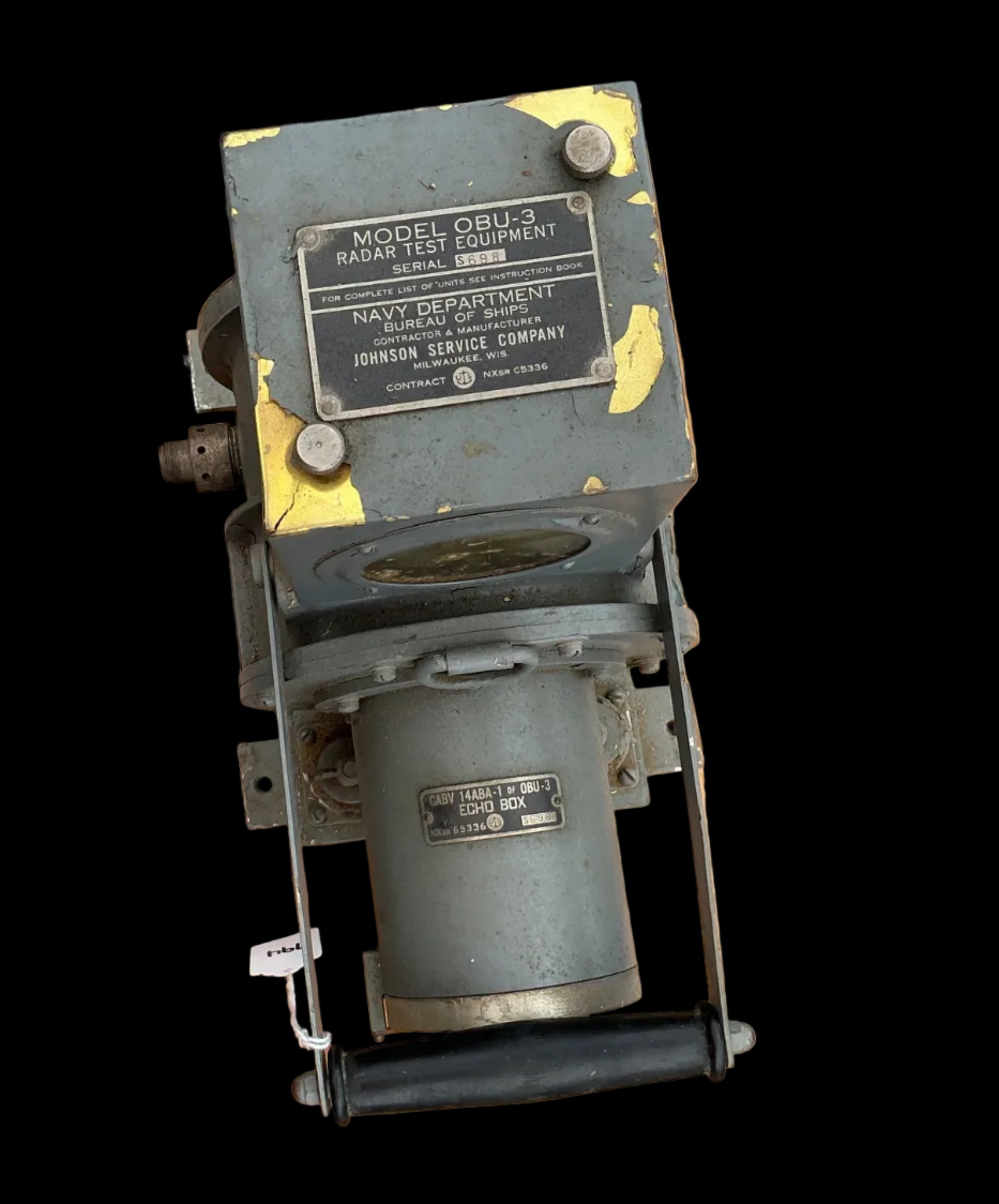

• Original data plates intact and legible











📦 Condition:





• Untested
• Structurally complete with major components present
• Echo box and viewing assembly intact
• Shows cosmetic wear, paint loss, and age-related wear
• Some corrosion present on mounting points
• Stored dry





Being sold as:



• Collector piece
• Restoration project
• Or display item for a WWII radar/electronics collection











📡 Historical Significance:





The OBU-3 was used in:



• Radar calibration and testing
• Signal simulation via echo box systems
• Maintenance of naval radar equipment
• Training and diagnostic operations





Echo boxes were critical for simulating radar returns and verifying system performance without live targets.









💡 Why This Piece Stands Out:





• Complete radar test assembly with echo box
• Bureau of Ships marked WWII equipment
• Large, visually impressive unit
• Strong crossover appeal: naval history + radar technology











🎯 Collector Appeal:





Ideal for:



• WWII naval radar collectors
• Electronics and communications collectors
• Museum or display installations
• Advanced radar equipment collections
